Low Scope

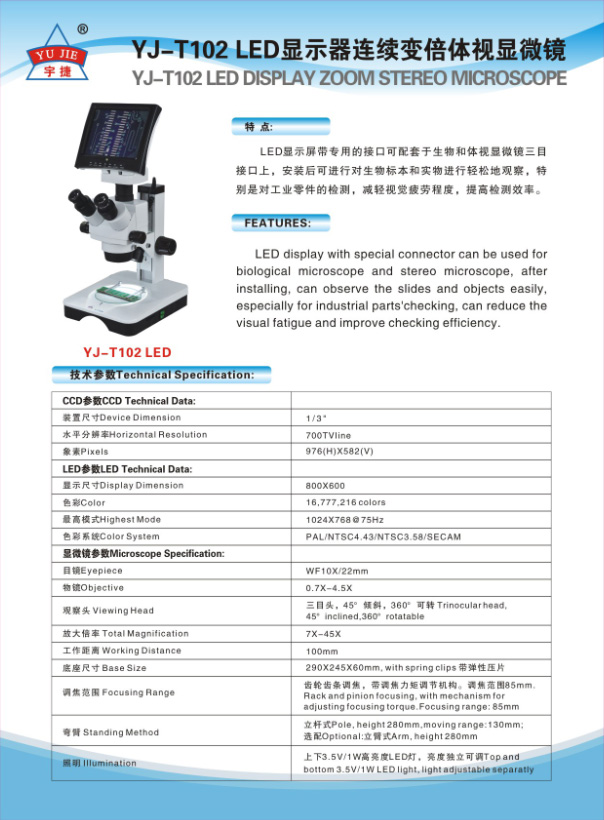

YJ-T102 Technical Specification (in Detailed)
Specific Function
- LCD Monitor Display
- Computer Connection and data saving
Delivery Time
- With in 2 weeks
| CCD Technical Data | LED Technical Data | ||
|---|---|---|---|
| Device Dimension |
1/3” | Display Dimension |
800×600 |
| Horizontal Resolution |
700TVline | Color | 16,772,216 Colors |
| Pixels | 976(H)×582(V) | Highest Mode |
1024×768@75㎐ |
| Color System |
PAL/NTSC4.43/ NTSC3.58/SECAM |
||
| Microscope Specification | |
|---|---|
| Eyepiece | WF 10X/22㎜ |
| Objective | 0.7X ~ 4.5X |
| Viewing Head | 45˚ inclined, 360˚ Rotatable |
| Total Magnification | 7X ~ 45X |
| Working Distance | 100㎜ |
| Base Size | 290×245×60㎜, with Spring Clips |
| Focusing Range | Rack and pinion focusing, with mechanism for adjusting focusing torque. Focusing range: 85㎜ |
| Standing Method | Pole, height 280㎜ Moving range: 130㎜ Optional: Arm, height 280㎜ |
| Illumination | Top and bottom 3.5V/1W LED light, light adjustable separately |
